AT-25 220/12

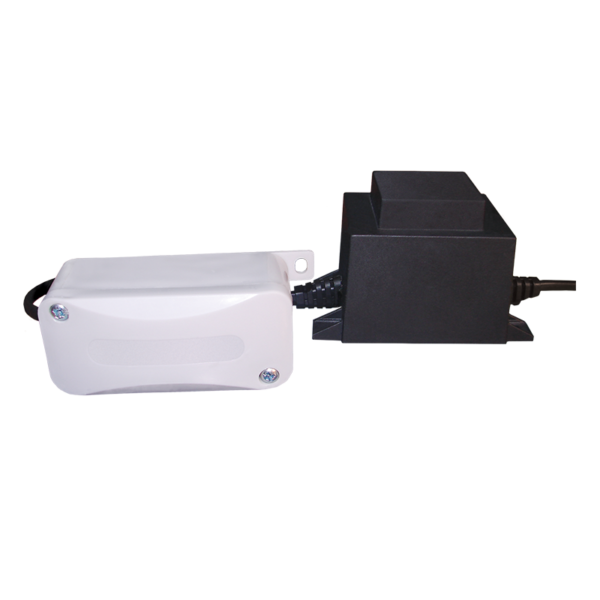

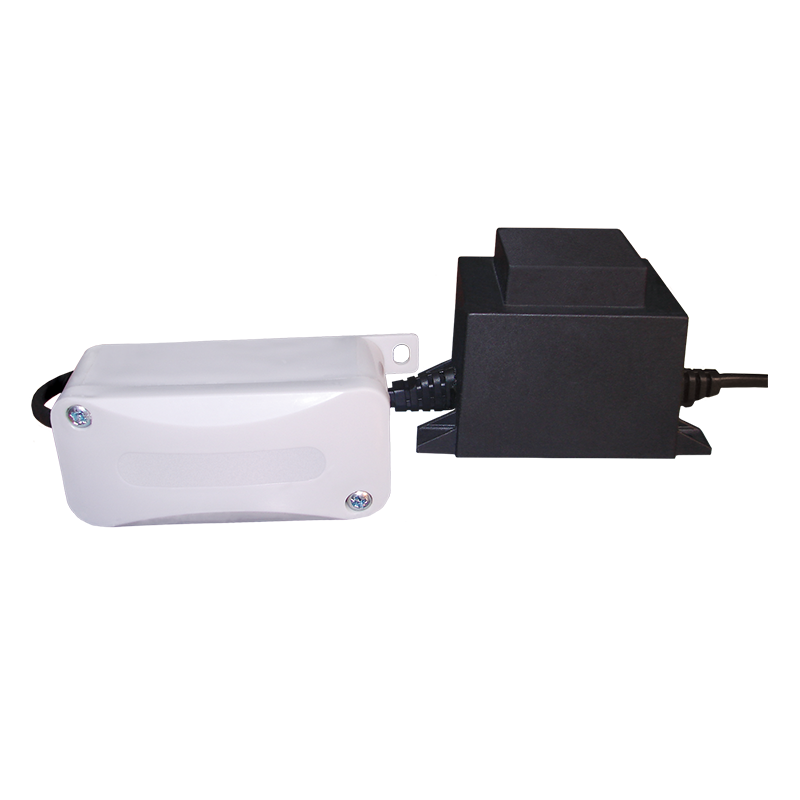

Step-down transformer.

SERIES OF PRODUCTS

AT-25 220/12

FEATURES
Low-voltage step-down transformers are used to ensure safe 12 V / 50 Hz power supply for residential fans with maximum motor power 16 W (25 VA) and maximum load current 2 A.Casing made of high-quality plastic.Supplied with external fuse blocks.The transformer has overload protection by thermal fuse.
MOUNTINGIndoor installation in areas not subjected to high temperature and humidity.  Suitable for flush mounting behind the false ceiling or wall recess mounting provided that sufficient ventilation is ensured to prevent overheating.Do not install the transformer above heating equipment.

AT-25 220/12 – data sheet (pdf 90.96Kb) – SHOWDOWNLOAD
