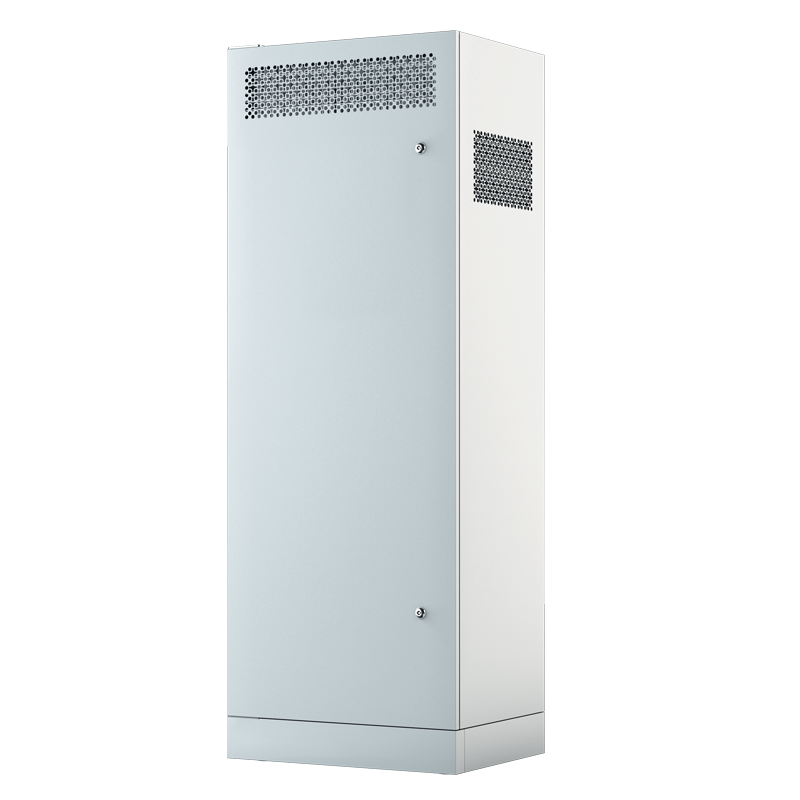

NL The CIVIC EC LB units are designed for single-room ventilation of schools, offices and other public and commercial premises. Air flow up to 1240 m³/h.

SERIES OF PRODUCTS

CIVIC EC LB 300 S21, CIVIC EC LB 300 S14, CIVIC EC LBE 300 S21 , CIVIC EC LBE 300 S14,
CIVIC EC LBE2 300 S21, CIVIC EC LBE2 300 S14, CIVIC EC LB 300-E S21, CIVIC EC LB 300-E S14,
CIVIC EC LBE 300-E S21, CIVIC EC LBE 300-E S14, CIVIC EC LBE2 300-E S21, CIVIC EC LBE2 300-E S14,
CIVIC EC LB 500 S21, CIVIC EC LB 500 S14, CIVIC EC LBE 500 S21, CIVIC EC LBE 500 S14,
CIVIC EC LBE2 500 S21, CIVIC EC LBE2 500 S14, CIVIC EC LB 1200 S21, CIVIC EC LBE 1200 S21,
CIVIC EC LBE2 S21

FEATURES
The CIVIC EC LB units are designed forsingle-room ventilation of schools, offices and other public and commercial premises.Offer the ideal simple and efficient ventilation solutions for existing and renovated buildings and require no layout of air ducts.Efficient supply and extract ventilation for separate premises.EC motors with low energy consumption.Low-noise operation.
Simple mounting.
DESIGN MOTORS
Made of high-quality polymer coated steel, internally lined with heat- and sound insulation of mineral wool or other materials.Built-in preheater and reheater modifications available for cold climate conditions. High efficient electronically commutated motors with external motor and impeller with forward curved blades. Such motors are the most state-of-the-art energy saving solution.EC motors are featured with high performance and total speed controllable range. High efficiency reaching 90 % is the premium advantage of the electronically commutated motors.
AIR FILTRATION
Supply and extract air is purified by a set of panel filters. Filtering class depends on the unit model.Panel G4 filter is used for extract air filtration.
BYPASS CONTROL AND AUTOMATION
The units are equipped with a bypass. The bypass damper opens for free cooling ventilation mode in summer. The CIVIC EC LB… S21 units are equipped with an integrated automation system.
The S21 controller allows integrating the unit into the BMS (Building Management System).
The unit can be controlled by the Blauberg AHU mobile application via Wi-Fi.

Download
the Blauberg AHU
app for Android
Download
the Blauberg AHU
app for iOS

The CIVIC EC LB… S14 units are equipped with an integrated automation system and the S14 wall mounted sensor control panel with LED-indication.

AIR DAMPERS
The automatic supply and extract air dampers are used to prevent uncontrollable air draughts during the unit standstill.
HEATERS
PREHEATING
CIVIC EC LBE and CIVIC EC LBE2 units are equipped with an electric preheater which protects the heat exchanger from freezing.
REHEATINGCIVIC EC LBE2 units feature an electric reheater to raise the supply air temperature.
HEAT EXCHANGER AUTOMATION FUNCTIONS
The CIVIC EC LB unit has a counter-flow heat exchanger made of polystyrene.
• In cold season the heat energy of the extract air flow is absorbed by intake air flow, thus decreasing the heat losses caused by ventilation. Condensate generated during heat recovery is collected in a drain pan and removed to the sewage system.• In warm season the heat of the outdoor air is absorbed by extract air flow. This way the supply air temperature decreases and heat recovery reduces operation loads for the air conditioner.The CIVIC EC LB… -E unit is equipped with a counter-flow heat exchanger made of enthalpy membrane.
• In cold season the heat and moisture of the extract air are absorbed by supply air through the enthalpy membrane. thus decreasing the heat losses caused by ventilation.• In warm season the heat and humidity of the outdoor air is absorbed by extract air flow through the enthalpy membrane. This way the supply air temperature and humidity decreases and heat recovery reduces operation loads for the air conditioner.
Functions CIVIC EC LB… S21 CIVIC EC LB… S14
Unit control via Wi-Fi using the mobile application +
Unit control via remote control panel
S22 control panel (option)

S14 control
panel
Unit control via remote wireless control panel
S22 Wi-Fi control panel (option)
Unit control via a wired remote LCD control panel
S25 control panel (option)
BMS (Building Management System) RS-485
Wi-Fi
Ethernet
MODBUS (RTU, TCP)
Blauberg Cloud Server service +
Speed switch + +
Filter replacement indication by filter timer by filter timer
Alarm indication full alarm description in the mobile application LED indication about alarms
Week scheduled operation +
Bypass automatic
manual manual
Timer +
Boost mode +
Fireplace mode +
Freeze protection using cyclical stops of the supply fan using cyclical stops of the supply fan
using preheating (option)
Reheater connection option
Cooler connection option
Minimum supply air temperature control +
Humidity control option option
CO₂ control option option
VOC control option
PM2.5 control option
Fire alarm sensor connection option option

Option: the functionality is available when purchasing the appropriate accessory (see the “Accessories” section)

FUNCTIONING
Cold outside air flows through the filters and heat exchanger and is moved to the room with a supply centrifugal fan.
Warm polluted air from the premise flows through the filter and the heat exchanger and is exhausted outside with an extract centrifugal fan.

CIVIC EC LB – data sheet (pdf 1.27Mb) – SHOWDOWNLOAD

CIVIC EC LB – user’s manual (pdf 5.09Mb) – SHOWDOWNLOAD

S21 – user’s manual (pdf 2.2Mb) – SHOWDOWNLOAD

S14 – user’s manual (pdf 1.38Mb) – SHOWDOWNLOAD

Modbus table for connecting S21 automation to BMS – user’s manual (pdf 140.84Kb) – SHOWDOWNLOAD
CIVIC EC LB 1200 – user’s manual (pdf 2.97Mb) – SHOWDOWNLOAD
