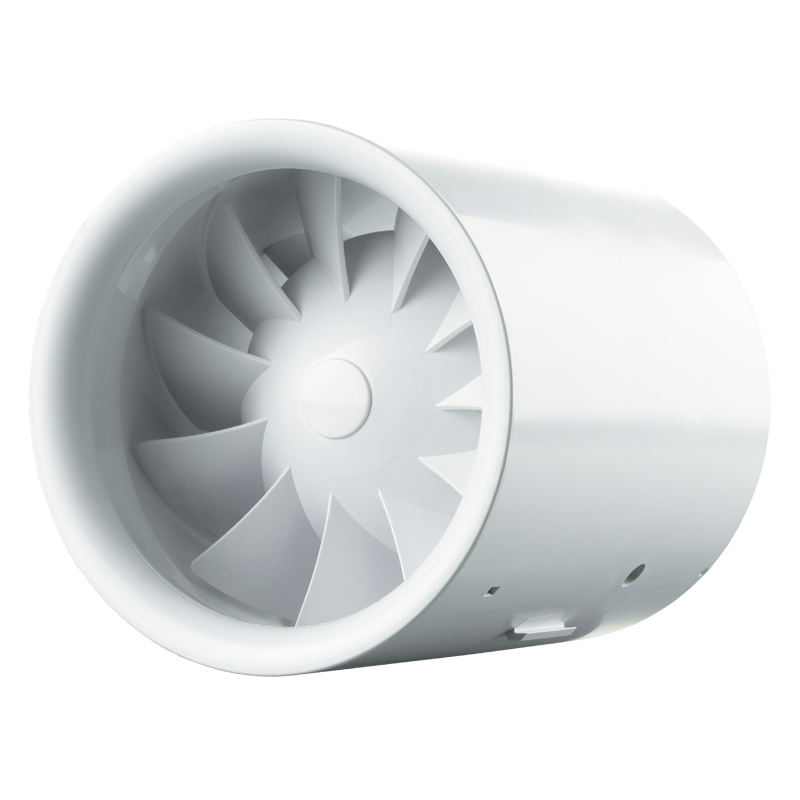

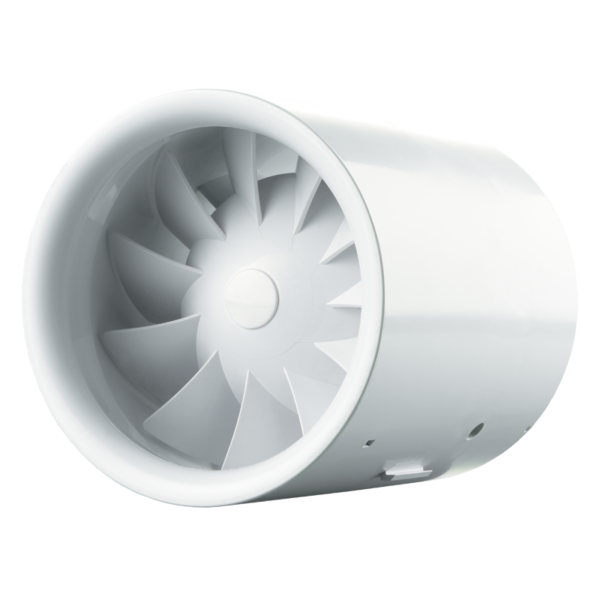

Brand new low-noise axial inline fans for exhaust or supply ventilation with superior capacity up to 375 m³/h.

SERIES OF PRODUCTS

Ducto 100, Ducto Plus 100, Ducto 125
Ducto Plus 125, Ducto 150, Ducto Plus 150
Ducto Power Plus 150, Ducto-U Power Plus 150

FEATURES

The casing and the impeller are made of high-quality durable plastic.Specially designed mixed-flow impeller profile ensures high air flow and low noise level.Protection rating IPX4.Low energy usage from 4.5 W.The models of Blauberg Ducto Series are equipped with a single-phase motor and are available in single- or two speed modifications.The motors have thermal overheating protection for motor overload prevention.Designed for PVC ducting systems or flexible ducts.From low to medium air flow motion for short distances at low air resistance.Compatible with Ø 100, 125 and 150 mm air ducts.

OPTIONS

Ducto Plus – reliable single-phase two speed motor.Ducto Power Plus – two-speed high-powered motor.Ducto T – modification with a regulated timer with the operating time from 2 to 30 minutes.Ducto W1 – modification with a power cord with IEC C14 electric plug.

FIXING BRACKETDucto-U – modification with a fixing bracket for flat surface mounting.

MOUNTINGThe fan is mounted into a matching duct size. Fastening with clamps in case of flexible duct connection.The mounting bracket enables installation of the fan on horizontal and vertical flat surfaces (Ducto-U model).Two fans can be installed in series for higher operation pressure.

CONTROL

Manual speed control with a room light switch. It is not included in the delivery package.Smooth speed control with a thyristor speed controller (see Electrical Accessories).Several fans may be connected to the same controller. The models with timer are not compatible with a speed controller.Automatic fan control with the electronic control unit MCD 60/0.3. The control unit is supplied separately.Automatic fan control with the timer T (built-in turn-off delay timer enables the fan operation within 2 to 30 minutes after the fan switching off).

OPERATION MODES OF FANS WITH TIMER

Updated automatic control for T modifications of models Ducto Plus 100, 125, 150 and Ducto Power Plus 150 enables to set one of four available operation modes. Changeover to another operation mode by means of by setting the DIP switch to a respective position.Mode 1 (single-speed mode)
The fan is turned off by default. The fan starts operating with the 1st speed when the switch is closed.
Mode 2 (single-speed mode)
The fan is turned off by default. The fan starts operating with the 2nd speed when the switch is closed.
Mode 3 (two-speed mode)
The fan operates with the 1st speed by default. The fan switches to the 2nd speed when the switch is closed.
Mode 4 (automatic interval mode)
The fan operates at the 1st speed by default. Each set time (adjustable from 1 to 15 hours) the fan switches to the 2nd speed automatically and reverts back to 1st speed after 2 – 30 minutes operation with maximum capacity.
