ISO-RB

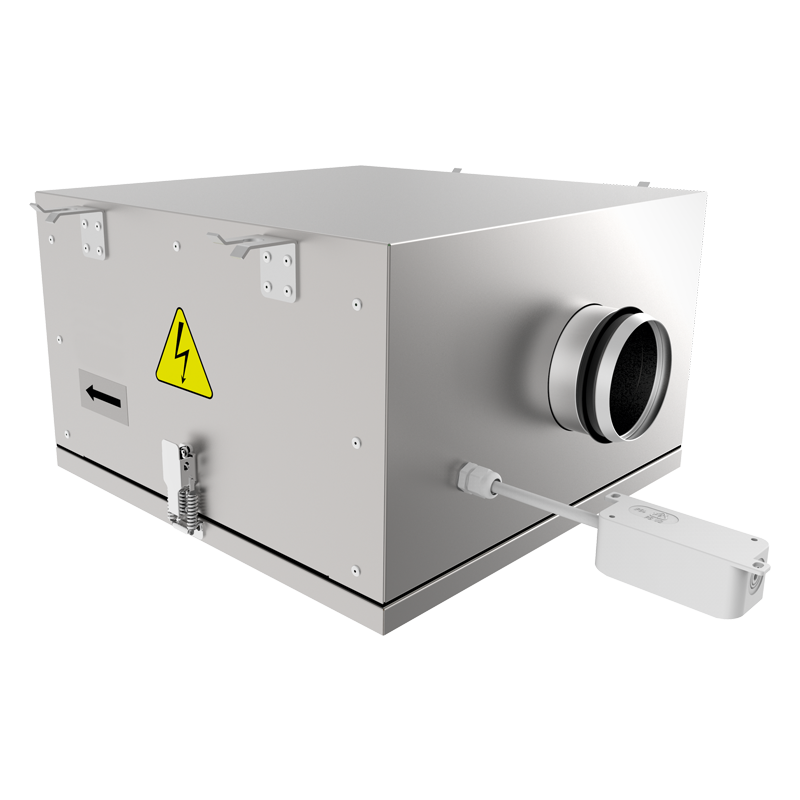

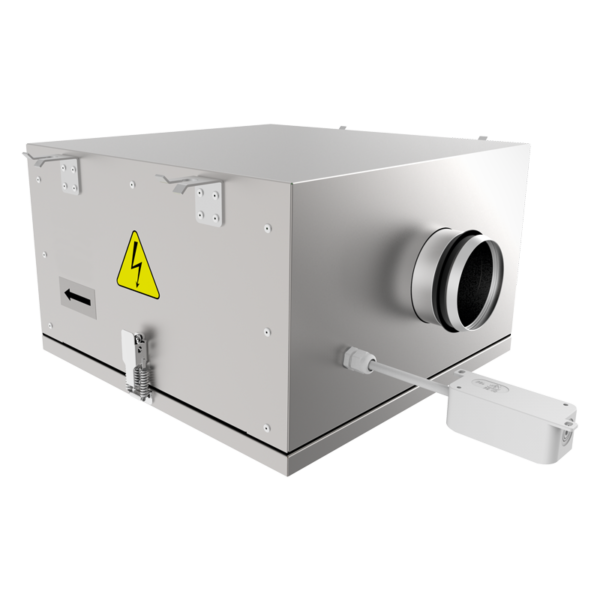

Sound-insulated inline centrifugal fans. Air flow up to 7000 m³/h.

SERIES OF PRODUCTS

Iso-RB 100, Iso-RB 125, Iso-RB 125 max, Iso-RB 150, Iso-RB 160,
Iso-RB 200, Iso-RB 250, Iso-RB 315 max, Iso-RB 355, Iso-RB 400,
Iso-RB 450, Iso-RB 500(Δ), Iso-RB 500(Y),

USE
Supply and exhaust ventilation systems in premises with high requirements to the noise level and with limited space for mounting.Possibility of space-restricted installation above suspended ceilings.Mounting into Ø 100–500 mm air ducts.
MOTOR
The fans are equipped with asynchronous motors with an external rotor and centrifugal impellers with backward curved blades.The motors are equipped with an integrated overheating protection with automatic restart.The use of ball bearings with specially selected lubricating oil guarantees low noise and makes the fan completely maintenance-free.
DESIGN SPEED CONTROL
The fan casing is made of aluzinc.For easy installation and operation, the top cover of the fan is secured with a special lock.Heat- and sound insulation is made of non-combustible 50 mm mineral wool layer. To ensure better noise absorption, the inner surface of the insulation is made of a perforated metal sheet.The round connecting spigots are rubber sealed.
Smooth or step speed control by means of a thyristor or autotransformer speed controller.Several fans can be connected to one controller, provided that the total power and operating current do not exceed the nominal parameters of the controller.
MOUNTING
The round inline fans are designed for connection to round air ducts. The fans are installed at an air duct junction. The use of flexible connectors requires fixation of the fan on the building structure by means of supports, mounts or fixing brackets.The fan can be fixed in any position with respect to the air flow direction indicated by the arrow on the fan casing. While mounting the fan provide enough access for servicing and repair operations.

Iso-RB – user’s manual (pdf 1.82Mb) – SHOW – DOWNLOAD
