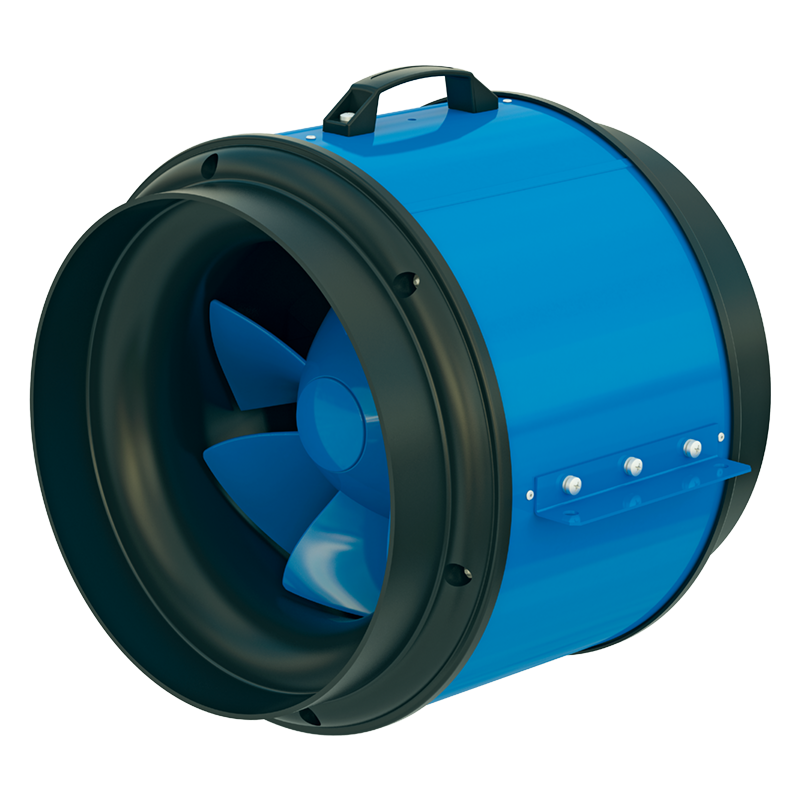

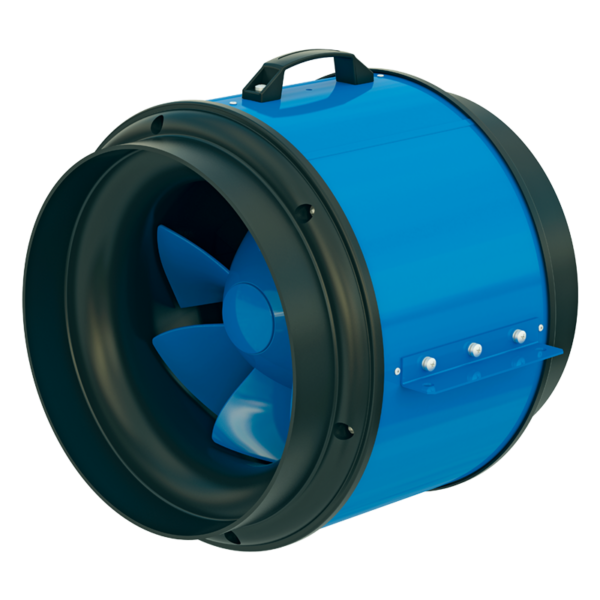

PRIMO ЕС

Inline mixed flow fans with EC motors. Maximum air flow up to 5700 m3/h.

SERIES OF PRODUCTS

Primo EC 355
Primo EC 355 max
Primo EC400

USE
Inline fans for supply and exhaust ventilation of various commercial and industrial premises requiring powerful air flow.The fans are compatible with ∅ 355 and 400 mm air ducts.Combines wide capabilities and high performance features of axial and centrifugal fans, providing powerful air flow.
DESIGN
The fan casing is made of polymer and reinforced with a metal housing. Due to the conically shaped polymer impeller with specially profiled blades, the air stream circular velocity increases, which results in higher air flow and pressure, as compared to characteristics of standard axial fans.The specially designed diffuser, impeller and airflow rectifier at the fan outlet provide smooth air flow distribution and enable the best combination of high capacity, powerful pressure and low noise.The fan casing is equipped with an airtight terminal box for connection to power mains.
SPEED CONTROL
Primo EC series are regulated by a smooth 0-10 V controller.
MOTOR MOUNTING
Primo EC series: equipped with energy efficient EC motors.220–240 V single phase at 50 Hz.Equipped with ball bearings for longer service life (up to 40 000 hours).All motors have manual reset thermal overload protection. The fans can be mounted at any place and at any angle within the ductwork system. Several fans may be installed in one system in parallel to attain higher air capacity or in series to increase operating pressure in the system. The fan casing is equipped with fixing brackets for suspended mounting.The fans can be mounted using a UM Primo bracket of the appropriate size (ordered separately).

Primo / Primo EC – user’s manual (pdf 1.85Mb) – SHOWDOWNLOAD

Primo EC – data sheet (pdf 606.41Kb) – SHOWDOWNLOAD
