Blauberg Benelux

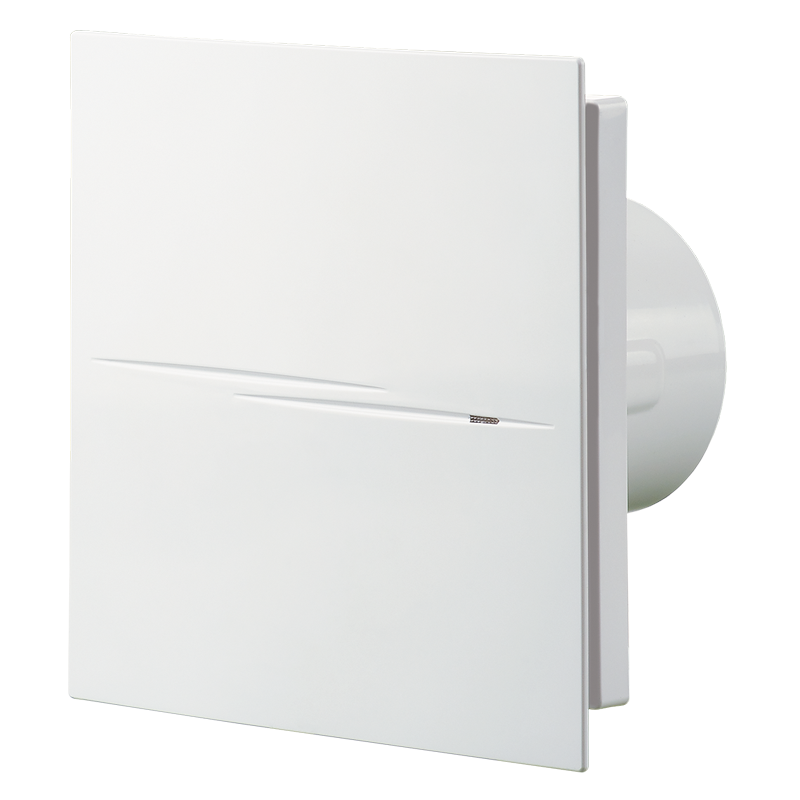

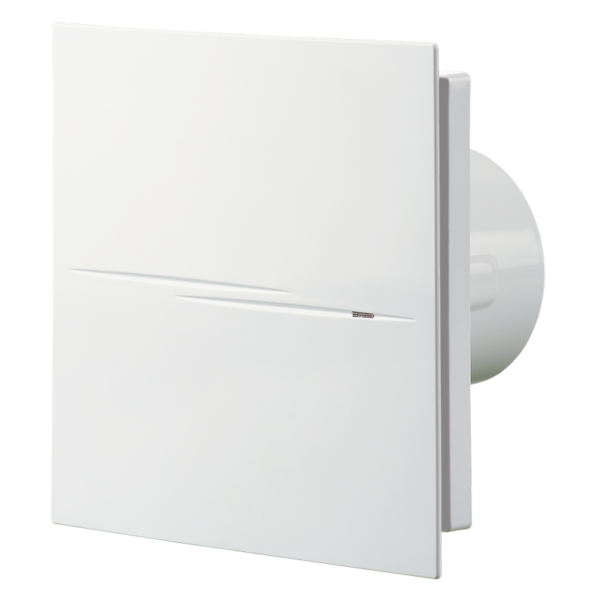

SILEO DESIGN

Fan with air capacity up to 90 m³/h.

SERIES OF PRODUCTS

Sileo Design 100

FEATURES

Specially designed mixed-flow impeller profile ensures high air flow and low noise level. Casing and impeller made of quality durable UV-resistant plastic. Backdraft damper for back flow prevention. The high ingress protection rating of IP45 makes the fan the ideal solution for the ventilation of bathrooms and shower rooms. Low energy demand from 75W due to a new high-efficient motor. The motor is mounted on special anti-vibration dampers. The exhaust pipe incorporates a specially designed air rectifier to reduce о the air turbulence, increase pressure and lower the noise level.
MOUNTING
Installation directly inside a ventilation shaft.Flexible air ducts may be used in case of remote location of the ventilation shaft. Connection of the air duct to the exhaust flange with a clamp. Wall mounting with screws.Suitable for ceiling mounting.
OPTIONS
Model  Sileo Design 100
 Option S T ST H SH
 Pull-cord switch
Timer
 Humidity sensor











Timer
Turn-off delay timer adjustable from 2 to 30 min.Humidity sensor
Humidity setpoint adjustable from 60 % up to 90 %.

Sileo Design – data sheet (pdf 430.83Kb) – SHOWDOWNLOAD

Sileo Design – operation manual (pdf 3.91Mb) – SHOWDOWNLOAD
