Heat recovery single-room units. Maximum air capacity up to 50 m³/h.

SERIES OF PRODUCTS

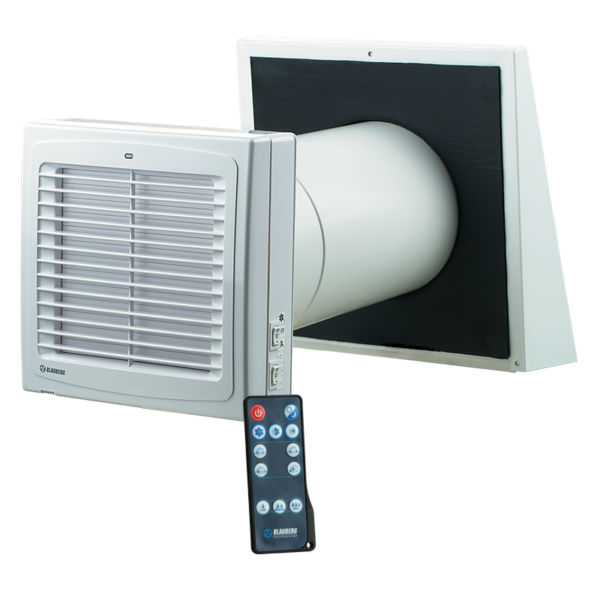

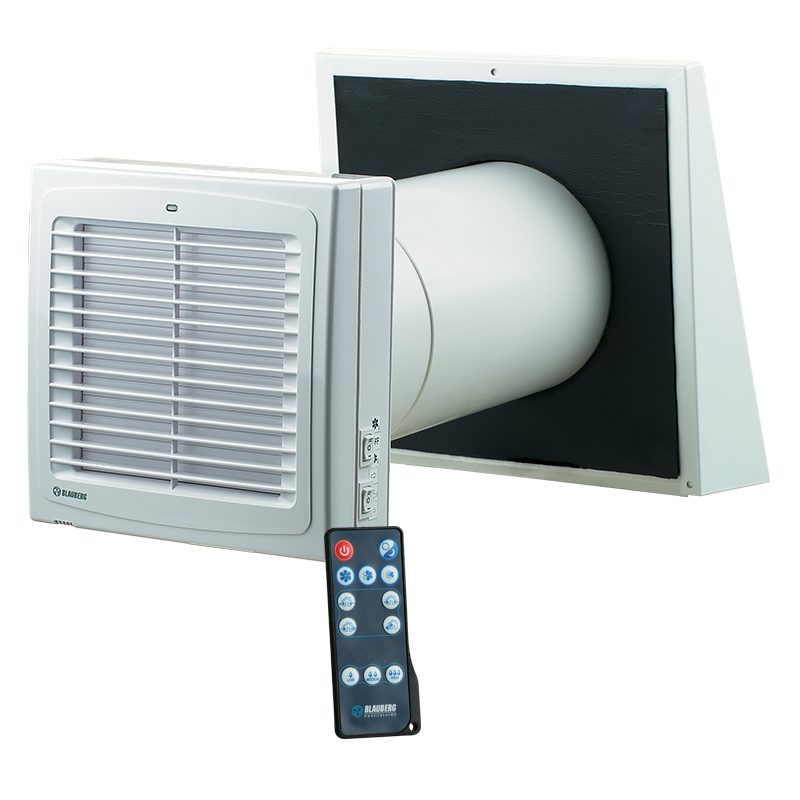

VENTO ERGO A50 Pro
VENTO ERGO A50-1 Pro
VENTO ERGO A50 S Pro
VENTO ERGO A50-1 S Pro

USE
Arrangement of efficient energy-saving supply and exhaust single-room ventilation in flats, houses, cottages, social and commercial premises.Heat recovery minimises ventilation heat losses. Humidity balance and regulated air exchange create individually controlled microclimate.Coordinated network based on several integrated single-room ventilation units with centralized control.
DESIGN
vento ergo a50 pro1 design
HEAT AND MOISTURE REGENERATION
High-tech ceramic energy accumulator with heat recovery up to 88%. Due to its cellular structure it has larger contact area surface and high efficiency. The energy accumulator is featured with excellent heatconducting properties and thermal energy storage capacity.
MODIFICATIONS
VENTO Ergo A50-1 Pro: – without a power cordVENTO Ergo A50-1 Pro P: – white power cord with Euro plugVENTO Ergo A50-1 Pro P1: – white power cord with USA plugVENTO Ergo A50-1 Pro P2: – white power cord with British plug
UNIT OPERATING LOGIC IN WINTER PERIOD
Warm stale air is extracted from the premise, flows through the ceramic regenerator and transfers its heat energy and moisture to it.In 70 seconds, after heating of the ceramic regenerator, the unit switches to the supply mode. Clean cold intake air flows through the regenerator and absorbs accumulated heat and humidity.In 70 seconds, after cooling of the ceramic regenerator, the unit  is switched to the extract air mode.
CONTROL
The unit operation mode control is performed by means of manual three-position switches located on the unit casing or a remote controller.The unit is equipped with a humidity sensor for indoor humidity control and regulation.Connection of the units into one ventilation system provide balanced ventilation and central control.
Remote control and operation mode selection:
Connection of several units in series enables their synchronous control by the first unit. The signal from the remote control is received by the first unit only.
vento ergo a50 pro1 connection
MOUNTING
The unit is designed for external through-the-wall installation inside a prepared round hole in the outer wall of the building.The best ventilation solution is pairwise installation of reverse phase connected units. Some units ensure supply of fresh air to the room and the other units provide air extract from the premise. This allows to arrange the most efficient balanced ventilation. In case of brand new construction the units are mounted in two stages:

  • pre-installation at the stage of the indoor finishing and outer decorative wall finishing. It includes installation of the telescopic air ducts, outer ventilation hood and laying out of electric cables.
  • final mounting before commissioning of a house. It includes installation of the regenerator, the filters, connection of the ventilation unit.

If mounting of the ventilation hood on the outer wall is undesirable it may be flush mounted and the external grille may be inserted into the outer window jamb using the KIT BlauPlast 204×60-1 pre-installation kit. Available upon separate order.

vento ergo a50 pro1 mounting
Angular mounting into a wall with standard thickness using KIT BlauPlast 204×60-1
