Blauberg Benelux

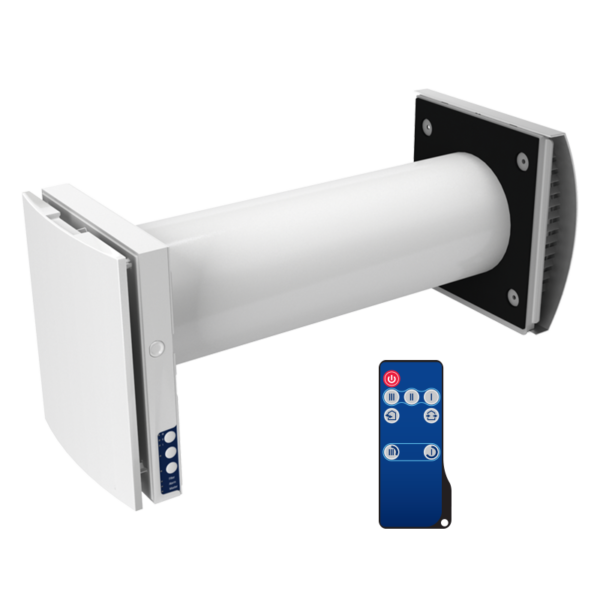

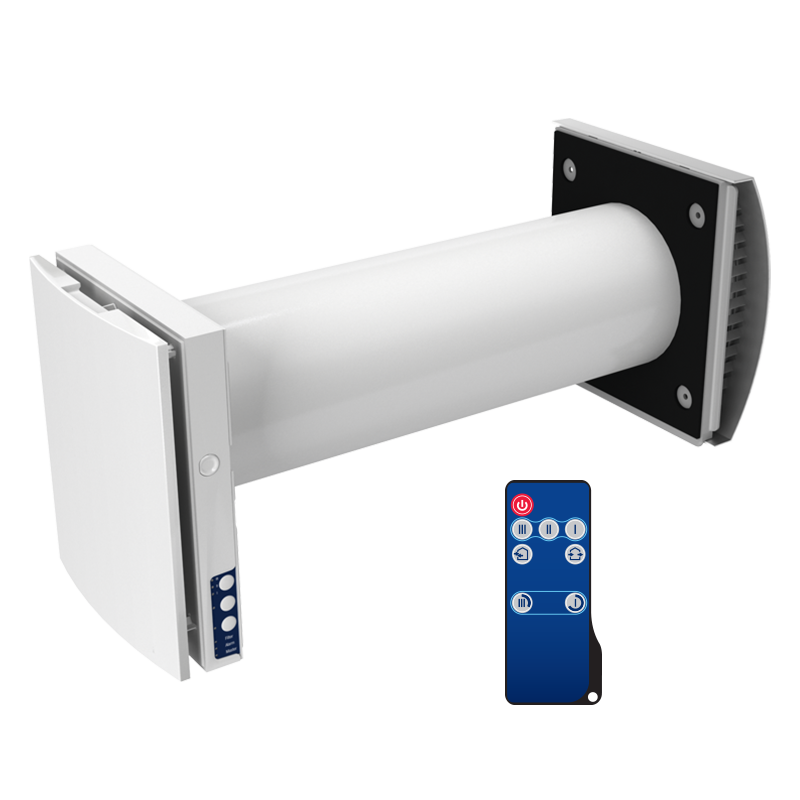

VENTO EXPERT DUO A30-1 S10 W V.2

Single-room heat recovery units with Wi-Fi control. Maximum air flow up to 30 m³/h.

SERIES OF PRODUCTS

VENTO Expert Duo A30-1 S10 W V.2

FEATURES
Arrangement of balanced energy saving, supply and exhaust, single-room ventilation in kitchen, bathroom and utility room.Reducing heat losses caused by ventilation due to heat recovery.Humidity balance and controllable air exchange create individually controlled microclimate.Wi-Fi data exchange between several single-room ventilation units for coordinated operation.Controlled by Android or iOS smartphone or tablet.
DESIGN
One of the best heat recovery on the market due to innovative hexagonal structure of the heat exchanger cells. Built-in Wi-Fi for wireless communication between units and Android or iOS device control.
HEAT AND HUMIDITY RECOVERY
UNIT OPERATING LOGIC IN WINTER PERIOD
One of the fans supplies fresh and cold air from outdoor, which flows through the correspondent part of the ceramic heat exchanger and absorbs accumulated heat and humidity.At the same time, the other fan extracts slate and warm air from indoor, that flows through the other part of the ceramic heat exchanger and transfers heat energy and moisture to it. After 70 seconds operation the fans change the rotation direction and opposite processes start.
CONTROL
Unit control via smartphone or tablet application.The units can be connected by Wi-Fi for synchronized operation.House ventilation control via cloud service from anywhere in the world.
Connection to smart house or Building Management System (BMS) via Wi-Fi.
 Blauberg Vento V.2 app for Android or iOS devices is available at Google Play and App Store.
Vento Expert Duo either can operate as independent unit or can be connected with other units in a house and controlled with a master unit. In this case, only the master unit receives a signal from the remote control. Control of the unit operation mode is also performed by means of the sensor control panel located on the unit casing or the remote control.

Vento Expert is equipped with a humidity sensor for indoor humidity control. If humidity increases above a set point, the unit boosts to the speed III.
MOUNTING
Vento Expert units should be installed in the living room and bedrooms while Vento Expert Duo units should be installed in kitchen, bathrooms and utility room. The unit is designed for through-the-wall installation inside a prepared hole in an outer wall of the building.

Vento Expert Duo A30-1 S10 W V.2 – user’s manual (pdf 9.14Mb) – SHOW – DOWNLOAD
